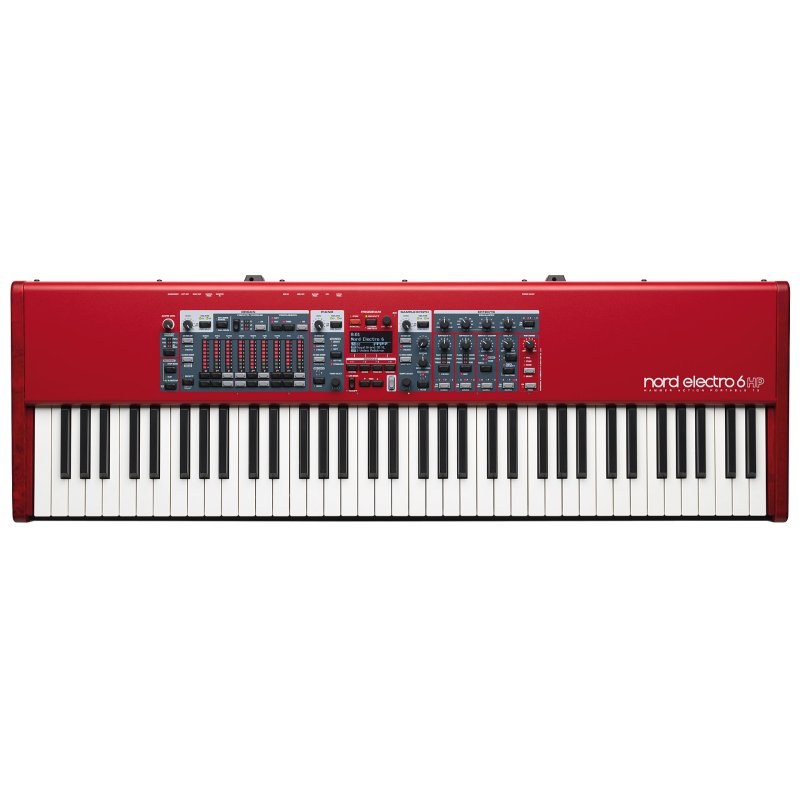

Nord Electro 6 HP Stage Keyboard — 73-Key Hammer Action Portable
A weighted piano feel in an 11.4 kg stage keyboard: the Electro 6 HP brings together the C2D organ with digital LED drawbars, the pianos of the Nord Piano Library and a Sample Synth, on 73 Hammer Action Portable keys.
Playing a piano ballad on an organ-style keyboard is something you feel in your fingers from the first bars. The Nord Electro 6 HP is a 73-key hammer action stage keyboard: its Hammer Action Portable keybed gives a weighted piano feel, and the instrument combines three independent sections, organ, piano and Sample Synth, playable as a layer or a split. The whole thing weighs 11.4 kg.
Highlights
- 73 Hammer Action Portable keys, velocity sensitive, from E to E.
- C2D organ: B3 tonewheel, B3 Bass, Vox, Farfisa and two pipe organs, with a Dual Organ mode for two independent manuals.
- Digital LED drawbars: drawbar settings can be read at a glance.
- 122 rotary speaker: slow, fast and stop speeds, Close or Normal microphone placement, adjustable rotor speeds.
- Piano section: Nord Piano Library, Gen 2 string resonance, Soft Release, 120-voice polyphony.
- Sample Synth: one hundred Nord Sample Library samples supplied, expanded memory for the Nord Sample Library 3.0.
- Smooth transitions between programs, 6 split points with crossfades and 4 Live slots.
Specifications
| Keyboard | 73 keys (E to E), Hammer Action Portable, velocity sensitive |
|---|---|
| Sections | Independent organ, piano and Sample Synth, as a layer or a split |
| Organ | C2D B3, B3 Bass, Vox, Farfisa, 2 pipe organs; Dual Organ mode; 3 tonewheel modes |
| Drawbars | Digital, LED |
| Piano | Grand, upright, electric, digital, layer, clavinet and harpsichord; 120 voices |
| Sample Synth | 100 Nord Sample Library samples included; 46 voices; velocity-sensitive low-pass filter |
| Effects | Effect 1: pan, tremolo, wah, ring modulator; Effect 2: 2 phasers, flanger, 2 choruses, vibe |
| Amp and rotary | 3 amp simulations, compressor, 122 rotary speaker, tube overdrive; 3-band equalizer with sweepable mid |
| Reverb and delay | Room, Stage, Hall reverb; delay with tap tempo and stereo ping-pong |
| Split and Live | 6 split points (C3 to F5) with crossfades; 4 Live slots |
| Outputs | 2 unbalanced ¼" L and R audio outputs; ¼" headphones |
| Inputs | ⅛" monitor; control pedal (TRS); sustain; rotary speaker speed |
| MIDI and USB | MIDI In, MIDI Out; USB type B (sound transfer and MIDI) |
| Dimensions | 107.4 × 12.1 × 34.4 cm |
| Weight | 11.4 kg |
| Included | User manual, power cord |
Electro 6 HP or Electro 6D: the real difference
Both versions share the same sound sections. The difference is under your fingers. The Electro 6D 61 and 73 have a semi-weighted waterfall keyboard, nine physical drawbars and a mount for the Half Moon Switch, for 8.1 and 9.2 kg. The Electro 6 HP replaces that keyboard with a 73-key weighted Hammer Action Portable keybed and shows its drawbars on LED columns, for 11.4 kg. For the keyboardist who plays piano and electric piano first, with organ on the side, the HP is the logical choice; the organist who slides across the keys will prefer the 6D.
Compatible pedals
- Control pedal: ¼" TRS jack; Nord names the Yamaha FC7, Roland EV-7 and EV-5, Korg EXP2 and XVP10.
- Sustain: dedicated ¼" input.
- Rotary speaker: momentary or switch-type pedal, on the rotary speed input.
- Half Moon Switch: Nord lists its mount on the Electro 6D 61 and 73, not on the HP.
Alternatives from other brands
| Model | Keyboard | Distinctive feature |
|---|---|---|
| Nord Electro 6 HP | 73 keys, Hammer Action Portable | C2D organ, piano and Sample Synth; 11.4 kg |
| Yamaha YC73 | 73 keys, BHS weighted | VCM organ, AWM2 and FM sounds; 13.4 kg |
| Yamaha CP73 | 73 keys, BHS weighted | Piano, E.Piano and Sub sections; 13.1 kg |
Frequently asked questions
- What is the difference between the Electro 6D and the Electro 6 HP?
- The keyboard and the drawbars. The 6D has a semi-weighted waterfall keyboard and nine physical drawbars; the HP has 73 weighted Hammer Action Portable keys and digital LED drawbars. The sound sections are the same.
- Are the Electro 6 HP drawbars physical?
- No. On the HP, the drawbars are digital: their settings are shown on LED columns and adjusted from the panel.
- Which expression pedal should I use?
- The control pedal input is a ¼" TRS jack. Nord names the Yamaha FC7, Roland EV-7 and EV-5, Korg EXP2 and XVP10 as compatible.
- Can the sounds be replaced?
- Yes. With the Nord Sound Manager software, every piano and every Sample Synth sample can be replaced with other sounds from the Nord Piano Library and the Nord Sample Library.
